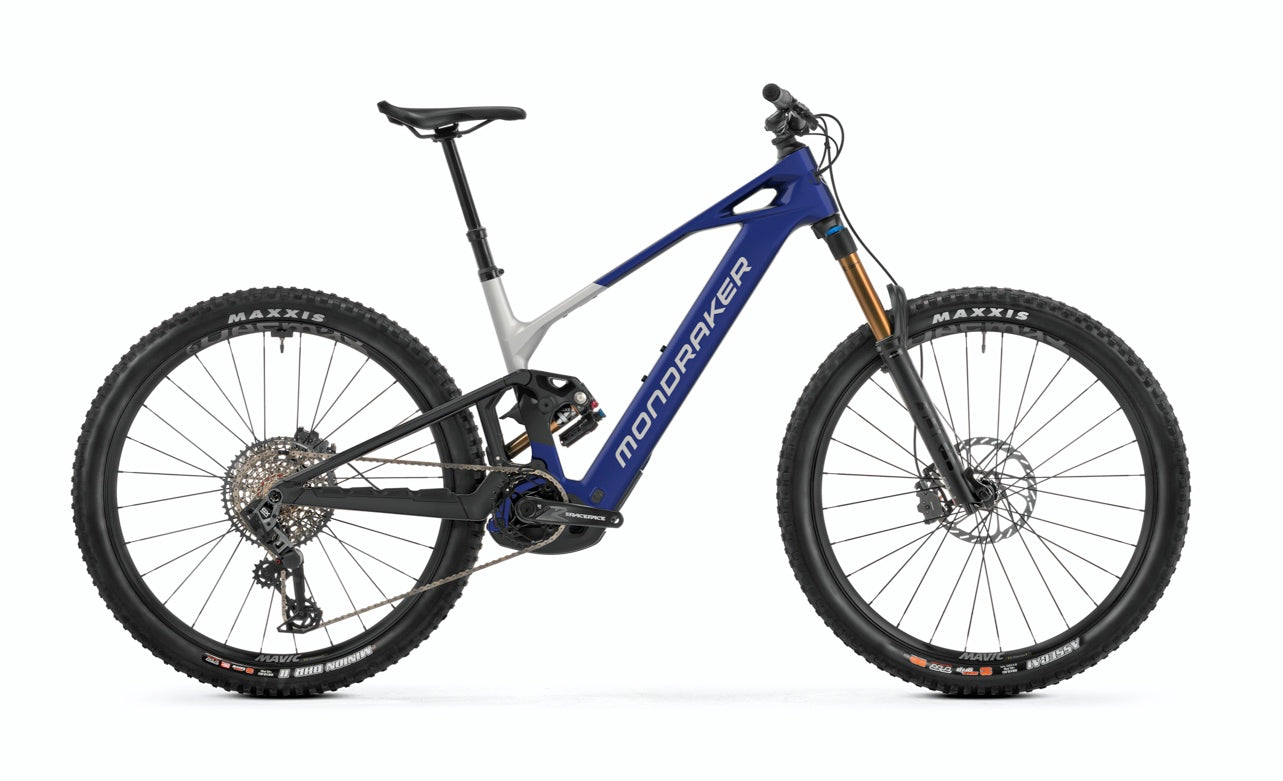

Mondraker
Couldn't load pickup availability
We have a size medium and a size large on order in Admiral Blue that is due in to us 1st September so secure it now. We are happy to accept a 20% deposit to secure it.
This is a new 2026 model.
Frame
Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock
Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer
Fork
Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle
Ergon SM-10
Front brake
Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake
Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever
Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust
Rims
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes
Mavic J-bend double butted, contactless lacing
Front hub
Mavic, Boost 15x110mm, IS 6 bolts
Rear hub
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Front tyre
Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Rear tyre
Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset
Race Face Aeffect-R ebike, 160mm
Chainring
Sram Eagle 34T T-Type, direct mount, steel, CL55
Chain
Sram GX Eagle T-Type, 12s, Powerlock
Rear derrailleur
Sram GX Eagle AXS, T-Type, 12s
Shift levers
Sram Eagle AXS Pod MMX, 12s
Casette
Sram XS-1275, 10-52T, T-Type, 12s
Weight
24,4 kg
Display
Kiox 400 / Bosch Mini Remote
Motor
Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Battery
Bosch Powertube 800Wh
