Mondraker

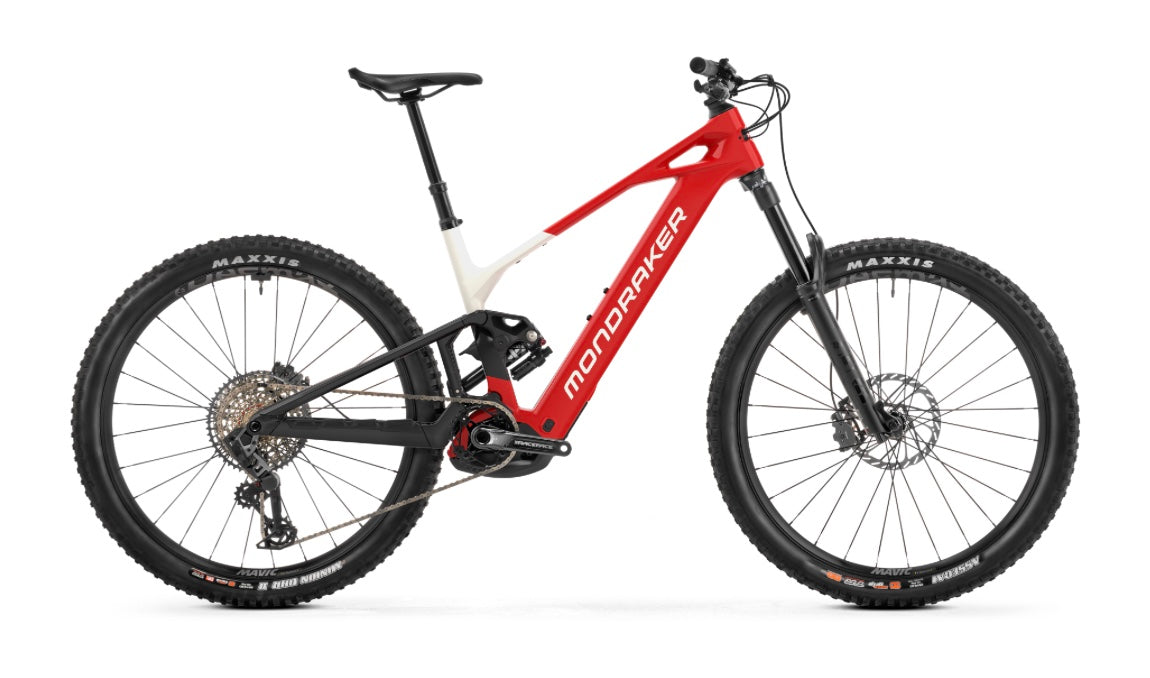

Mondraker Crafty Carbon R 2026 Electric Mountain Bike

Mondraker Crafty Carbon R 2026 Electric Mountain Bike

Regular price £6,799.00 GBP
Regular price Sale price £6,799.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Color

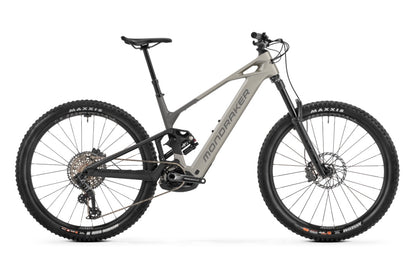

We have a size M/L (medium/large) in stock NOW in Golden silver and a red & white one that is due in to us 1st September so secure it now. We are happy to accept a 20% deposit to secure it.

  • Frame

    Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

    Sizes

    S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

    Rear shock

    Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

    Shock settings

    CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer

    Fork

    Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

    Headset

    Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

    Stem

    Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

    Handlebar

    Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

    Grips

    Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

    Seatpost

    Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)

    Saddle

    Ergon SM-10

    Front brake

    Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

    Rear brake

    Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

    Brake lever

    Sram Maven Base , SwingLink and lever pivot bushings, tools-free reach adjust

    Rims

    Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

  • Spokes

    Mavic J-bend double butted, contactless lacing

    Front hub

    Mavic, Boost 15x110mm, IS 6 bolts

    Rear hub

    Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub

    Front tyre

    Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead

    Rear tyre

    Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead

    Crankset

    Race Face Aeffect-R ebike, 160mm

    Rings

    Sram Eagle 34T T-Type, direct mount, steel, CL55

    Chain

    Sram GX Eagle T-Type, 12s, Powerlock

    Rear derrailleur

    Sram S1000 Eagle AXS T-Type, 12s

    Shift levers

    Sram Eagle AXS Pod MMX, 12s

    Casette

    Sram XS-1270, 10-52T, T-Type, 12s

    Weight

    23,9 kg

    Display

    Kiox 400C / Bosch Mini Remote

    Motor

    Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

    Battery

    Bosch Powertube 800Wh

  • IN STORE
  • FULLY ASSEMBLED
  • LOCAL DELIVERY AVAILABLE
